The E-Z Fit Gold Pipe Clamps by FIT-UP PRO are forged for strength and performance in pipe welding applications. Engineered for sizes 1 – 14″ / 25 – 370 mm, these heavy-duty clamps feature galvanized forged steel construction for long-lasting durability in the field. Five overlapping size options provide maximum flexibility, while optional stainless steel contact covers eliminate contamination on sensitive jobs. Perfect for pipe-to-pipe, elbow, and flange connections, E-Z Fit Gold stands out as the market’s most robust high-low fit-up clamp. These clamps are not lifting devices and should be used with separate supports.
E-Z FIT GOLD PIPE CLAMPS
Mobile Nav
| Clamps | |||
| Part No. | Description | Range OD | Weight |
| EZG3 | E-Z Fit Gold Pipe Clamp 1 – 3″ | 1 – 3″ / 20 – 90 mm | 3 lbs / 1.40 kg |
| EZG5 | E-Z Fit Gold Pipe Clamp 2 – 5″ | 2 – 5″ / 50 – 150 mm | 7 lbs / 3.00 kg |
| EZG7 | E-Z Fit Gold Pipe Clamp 3 – 7″ | 3 – 7″ / 90 – 195 mm | 7.5 lbs / 3.30 kg |
| EZG9 | E-Z Fit Gold Pipe Clamp 5 – 9″ | 5 – 9″ / 125 – 245 mm | 15.5 lbs / 7.00 kg |
| EZG14 | E-Z Fit Gold Pipe Clamp 9 -14″ | 9 – 14″ / 225 – 370 mm | 20 lbs / 9.00 kg |
| Stainless Steel Covers and Screws Only | |||
| Part No. | Pipe Clamp Size | ||
| * EZG3SS | 1 – 3″ / 20 – 90 mm | ||
| * EZG5/7SS | 2 – 5″ & 3 – 7″ / 50 – 195 mm | ||
| * EZG9/14SS | 5 – 9″ & 9 – 14″ / 125 – 370 mm | ||
| * Suitable for stainless steel |
This classic design high-low alignment clamp has been in use worldwide for years. The heavy-duty design utilizes forged steel, galvanised to offer protection to ensure a robust product.
With a durable, yet cost effective fabricated design, the E-Z Fit Gold pipe clamps fit up to 14″ pipe and are available in five overlapping sizes.
Available in five sizes for 1 – 14″ / 25 – 370 mm pipe fit-up.
Heavy-duty design: forged steel, galvanised.

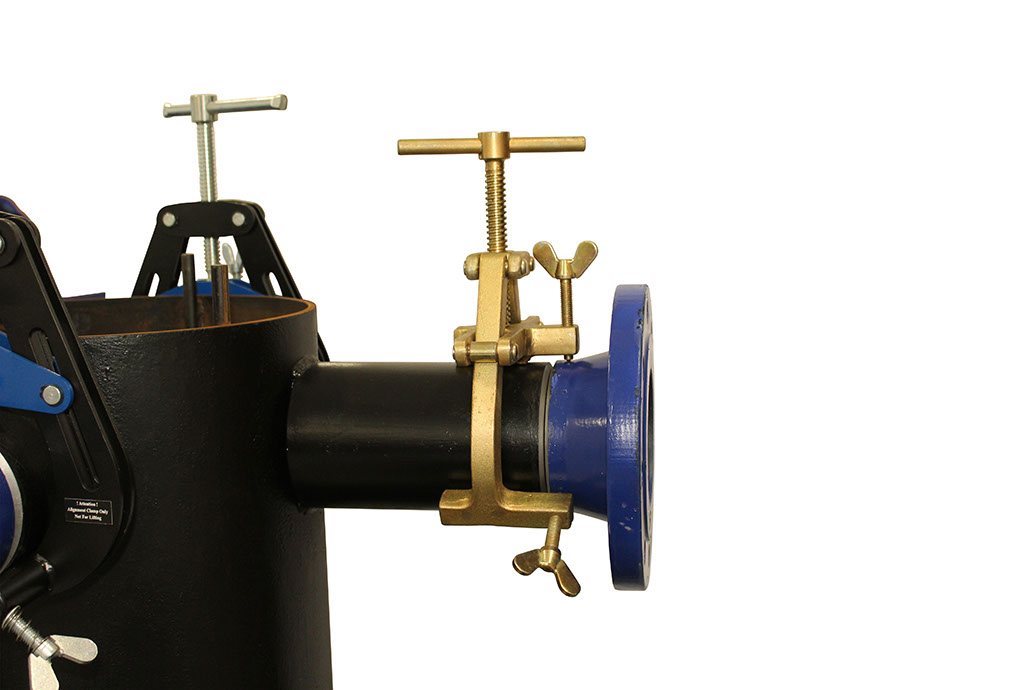

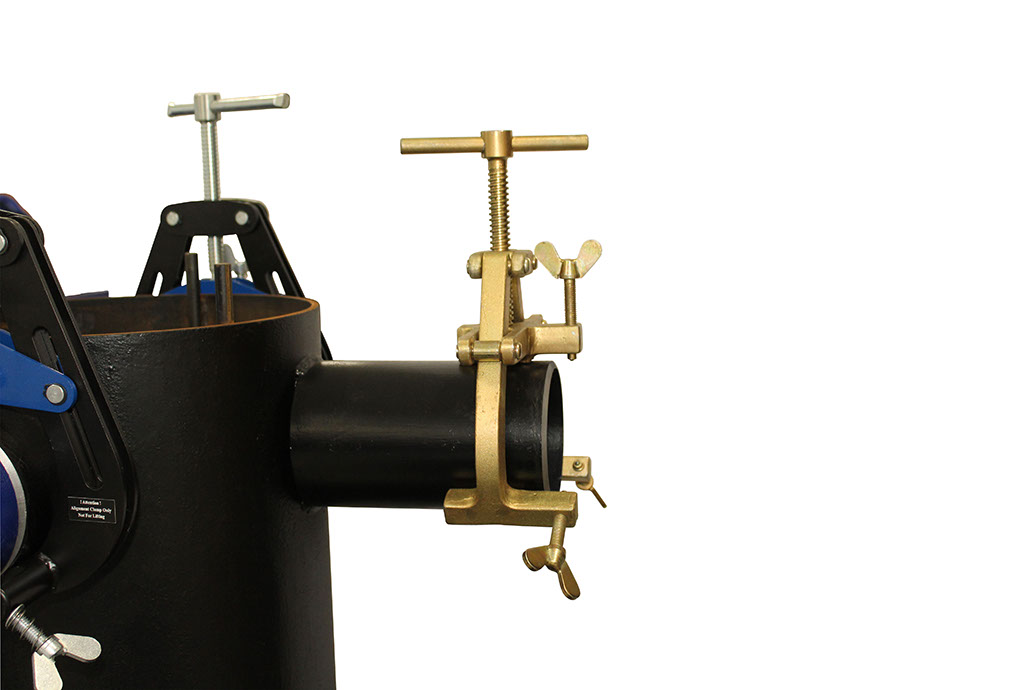

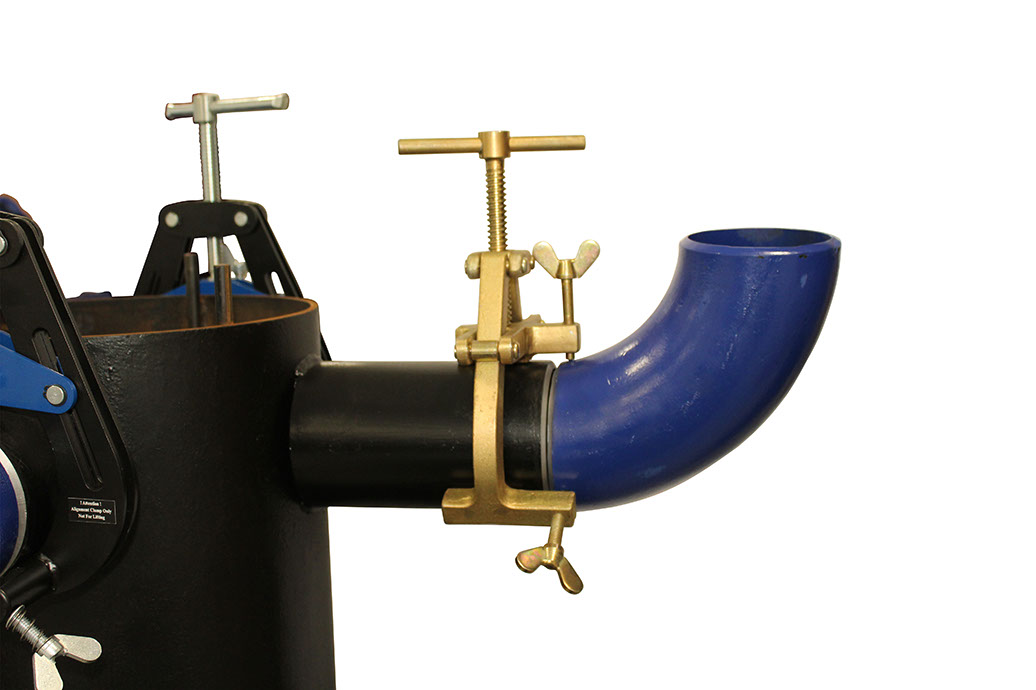

Great for most types of fit-ups. Pipe to pipe, pipe to elbow and pipe to flange amongst others.
The most heavy-duty high-low fit-up clamp on the market.
OPTIONAL EXTRAS
Stainless steel covers can be fitted quickly to the clamping feet.
This makes all contact points of the clamp stainless, thus eliminating contamination of the pipe.
