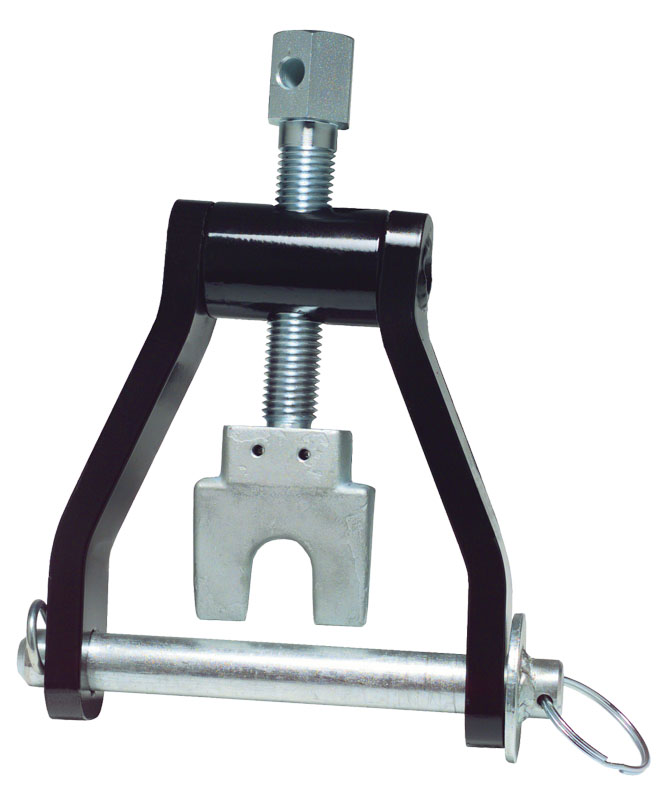

The FIT-UP PRO Flange Spreader is a rugged, precision-engineered tool designed to safely separate pipe flanges during maintenance, installation, and inspection. It is suitable for flange diameters from 1 – 24″ / 25 – 610 mm and supports pressure ratings between 150 – 1,500 lbs / 68 – 680 kg. The tool features a hardened steel wedge that delivers controlled spreading action, reducing the risk of damage to flanges or surrounding components. With four available models (ST-301 to ST-304), spread pin diameters range from 5/8 – 1″, making it adaptable for various flange classes. The large feed screw allows smooth operation using either a 1 3/8″ wrench or a 1/2″ (12 mm) bar, ensuring flexibility even in confined spaces. Built with a compact, robust body for harsh industrial environments, this flange spreader provides repeatable, secure performance. It is a must-have for professionals who prioritize safety, precision, and durability in flange separation tasks.
FLANGE SPREADER
Mobile Nav
| Flange Class | ||||||||||
| Part No. | Model | Description | Spread | Pin Diameter | 150 lbs | 300 lbs | 400 lbs | 600 lbs | 900 lbs | 1,500 lbs |
| 784003 | ST-301 | 3″ Flange Spreader | 3″ | 5/8″ | 1 – 6″ | 3/4 – 4″ | 1/2 – 2″ | n/a | n/a | n/a |
| 784002 | ST-302 | 4″ Flange Spreader | 4″ | 3/4″ | 2 – 12″ | 11/2 – 8″ | 1 – 4″ | 1″-4″ | 1 – 2″ | 1 – 2″ |
| 784001 | ST-303 | 5″ Flange Spreader | 5″ | 7/8″ | 5 – 24″ | 21/2 – 12″ | 11/2 – 8″ | 2″-6″ | 1 – 4″ | 1 – 3″ |
| 784000 | ST-304 | 63/8″ Flange Spreader | 63/8″ | 1″ | 10 – 24″ | 7 – 24″ | 31/2 – 16″ | 4″-10″ | 1 – 8″ | 1 – 5″ |
The SUMNER manual flange spreader is a durable, compact tool designed for precision and strength in most pipe fitting applications. It accommodates flange sizes ranging from 1 – 24″” / 25 – 610 mm and is suitable for pressure ratings from 150 – 1,500 lbs / 68 – 680 kg. Built for versatility, it features a hardened wedge for safe and effective flange separation, along with a large feed screw that offers smooth and controlled spreading action.
The drive system is designed for user convenience, operable using either a 13/8″” wrench or a 1/2″” (12 mm) bar, allowing for flexibility in tight or awkward positions. Its rugged, compact construction ensures it can handle tough industrial environments without compromising performance. With four distinct models available to cover a wide range of flange diameters, the SUMNER flange spreader is an essential tool for professionals seeking safety, efficiency, and reliability in flange maintenance and installation work.
