FIT-UP PRO Spacing Wedges are designed to create precise weld gaps and improve the overall accuracy of pipe fit-ups. Available individually or in boxes of ten, these wedges are essential accessories when using Mathey Dearman clamps. Their case-hardened wedge portion ensures durability, while the softer upper part minimizes the risk of splintering during use. Common dimensions include 4 × 0.75 × 0.25″ / 102 × 19 × 6.4 mm, 3.5 × 1.5 × 0.25″ / 89 × 38 × 6.4 mm, and 8 × 1.5 × 0.25″ / 203 × 38 × 6.4 mm. To use, simply align the pipe ends, secure a chain or cage clamp, and insert the spacing wedge to achieve the desired gap. These wedges allow for efficient and repeatable alignment without compromising material integrity, making them a staple for professional welders seeking precision, speed, and reliability in weld preparation.
SPACING WEDGES
ONLY STOCKED IN THE AMERICAS
Mobile Nav
| Part No. | Description | Dimensions |

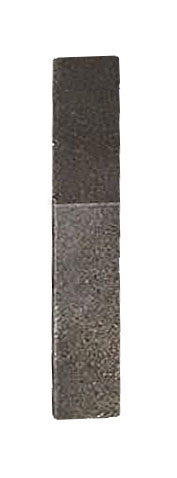

| D274 | D274 spacing wedge | 4 x 0.75 x 0.25″ / 102 x 19 x 6.4 mm |

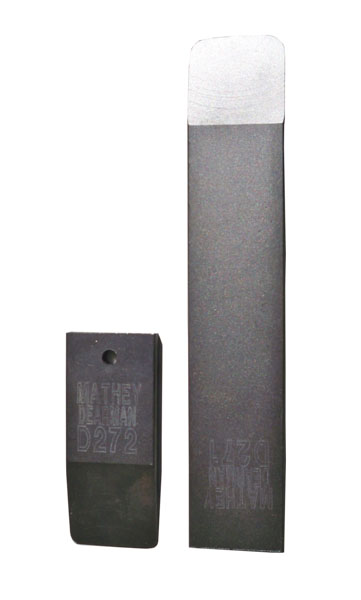

| D272 | D272 spacing wedge | 3.5 x 1.5 x 0.25″ / 89 x 38 x 6.4 mm |
| D271 | D271 spacing wedge | 8 x 1.5 x 0.25″ / 203 x 38 x 6.4 mm |

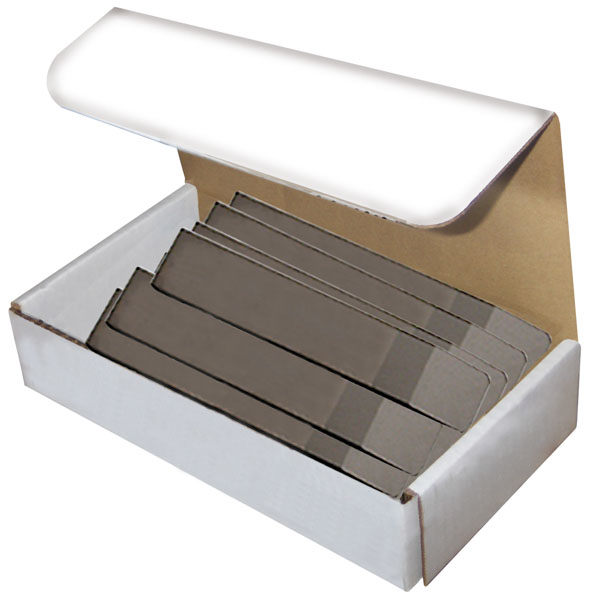

| D274-BOX | D274 spacing wedge – box of 10 | 4 x 0.75 x 0.25″ / 102 x 19 x 6.4 mm |
| D272-BOX | D272 spacing wedge – box of 10 | 3.5 x 1.5 x 0.25″ / 89 x 38 x 6.4 mm |
| D271-BOX | D271 spacing wedge – box of 10 | 8 x 1.5 x 0.25″ / 203 x 38 x 6.4 mm |
When using Mathey Dearman clamps, spacing wedges enable better fit-up of pipe ends. Wedges are used to create precise weld gaps and display in imperial measurement.

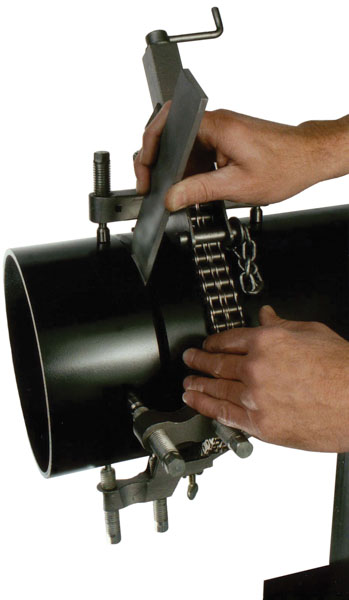

Simply move the pipe ends together, mount and tighten a chain clamp or cage clamp around the pipe and spread the gap to the desired width using the spacing wedge.
The wedge portion of the spacing wedge is case hardened for long life, while the upper part of the wedge is soft enough to prevent splintering.
