The FIT-UP PRO Ultra Clamps offer durable, cost-effective pipe alignment for diameters ranging from 1 – 14″ / 25 – 370 mm. Featuring a proven ACME-thread design, they’re ideal for pipe-to-pipe, pipe-to-elbow, and pipe-to-flange fit-ups. Each clamp includes stainless steel feet and ball-tipped wing nuts, allowing safe use on stainless steel without additional accessories. Lightweight construction enhances overhead usability, while the robust frame ensures longevity. These clamps are available in three sizes with weights ranging from 4 – 18 lbs / 1.80 – 8.20 kg, making them a versatile and contamination-free solution for reliable pipe alignment in fabrication settings.
ULTRA CLAMPS
Mobile Nav
| Part No. | Old Sumner Part No. | Description | Range OD | Weight |
| * 1220 | 781130 | Ultra Clamp 1 – 3″ (MATHEY QFC12) | 1 – 3″ / 25 – 90 mm | 4 lbs / 1.80 kg |
| * 1221 | 781150 | Ultra Clamp 2 – 6″ (MATHEY QFC26) | 2 – 6″ / 50 – 170 mm | 11 lbs / 5.00 kg |
| * 1222 | 781170 | Ultra Clamp 6 – 14″ (MATHEY QFC512) | 6 – 14″ / 165 – 370 mm | 18 lbs / 8.20 kg |
| * Suitable for stainless steel |
This classic design high-low alignment clamp has been in use worldwide for years.
With a durable, yet cost effective fabricated design, the ultra clamps fit up to 14″ pipe and are available in three sizes.
Working on stainless steel?
The new ultra clamps can be used on stainless steel without any additional accessories due to the stainless steel feet and balls in the wing-nuts, preventing contamination of the pipe.
Available in three sizes for 1 – 14″ / 25 – 370 mm pipe fit-up.
Durable ACME-thread design used for years in the field.
Lightweight design is great for overhead work.
With stainless steel contact points standard, the ultra clamp is ready for exotic pipe fabrication out of the box.

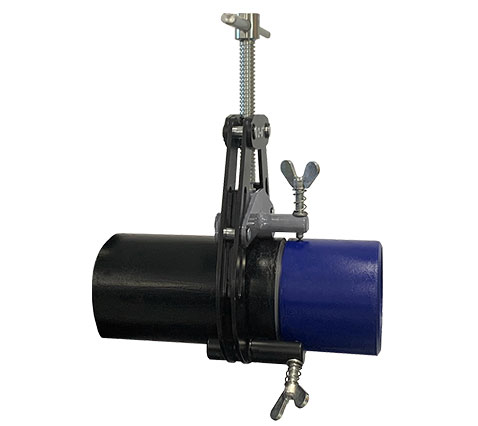

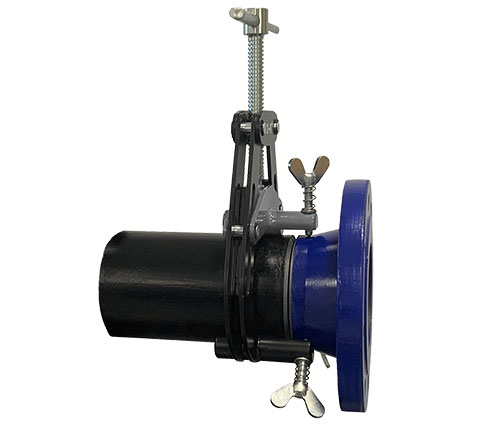

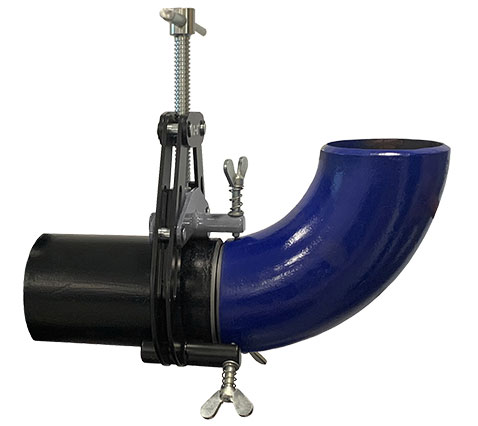

Great for most types of fit-ups. Pipe to pipe, pipe to elbow and pipe to flange amongst others.
The most cost effective yet durable high-low fit-up clamp on the market.
