The FIT-UP PRO Centering Head is a high-precision layout tool engineered for locating pipe centerlines, marking angles, and defining points around cylindrical surfaces. Suitable for use on pipe diameters from 3 – 40″ / 76 – 1,016 mm, this tool features a rotating protractor dial marked in 2.5° increments for accurate point location. Constructed for durability and portability, it includes a built-in punch and a magnetized base for stable positioning during layout. Whether you’re working on shafts, tanks, or complex pipe systems, the Centering Head offers unmatched versatility and reliability. Its robust design ensures consistent accuracy, making it an indispensable tool for welders, pipefitters, and layout technicians. Ideal for both field and shop environments, this centering head saves time and improves layout precision, helping professionals execute complex jobs with ease and confidence. Packaged in a convenient blister pack, it’s ready for work wherever you are.
CENTERING HEAD
Mobile Nav
| Part No. | Old Sumner Part No. | Description | Shipping Weight | Shipping Dimensions |
| D206 with punch and multi-tool | 784520 | Magnetized pipe centering finder | 3 lbs / 1.35 kg | 8 x 8″ / 200 x 200 mm |

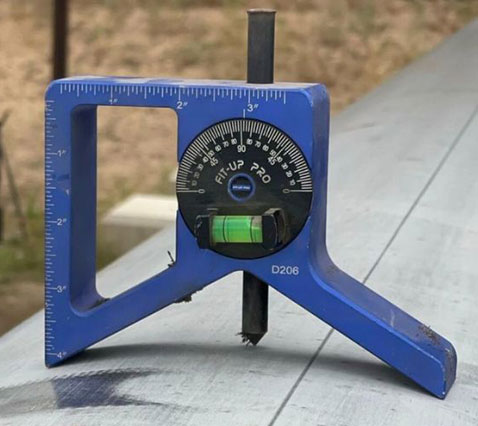

The FIT-UP PRO D206 centering head is a precision tool, useful for finding pipe centre lines, establishing angles or points around pipes, shafts, tanks or other cylindrical surfaces. The rotating protractor dial is marked in 2.5° increments for precise point location. The centering head is designed for use on cylindrical surfaces from 3 to 40″” in diameter.
This product comes in blister packaging.
FEATURES AND ADVANTAGES
True – Precisely locates top dead center
Easy – Simple and quick to use
Versatile – Use to find points on shafts, tanks, or pipe
