The FIT-UP PRO Pipe Wrap is a versatile tool for marking straight lines, elbow cuts, and angles on pipe diameters from 3 – 26″ / 76 – 660 mm. Available in sizes like 4 × 4 ft / 102 × 1,219 mm, 4 × 6 ft / 102 × 1,829 mm, and 4 × 7 ft / 102 × 2,134 mm, the wrap includes a table of tangents, a 45° angle chart, and increment markings in 1/8″ / 3.2 mm. Constructed of abrasion- and solvent-resistant material, it is double-ruled for convenience and ensures durability in harsh jobsite conditions. A critical aid for layout professionals.
PIPE WRAP
Mobile Nav
| Part No. | Description | Pipe Size |
| D160 | Wrap, 4″ x 4 ft / 102 x 1,219 mm | 3 – 15″ / 76 – 381 mm |
| D170 | Wrap, 4″ x 6 ft / 102 x 1,829 mm | 3 – 22″ / 76 – 559 mm |
| D177 | Wrap, 4″ x 7 ft / 102 x 2,134 mm | 3 – 26″ / 76 – 660 mm |
Optionally, D184, D185 and D187 pipe wrap is sold per foot and does not have any markings or instructions.
| Part No. | Description | Note |
| D184 | 4″ Wide -1′ Increment | ONLY STOCKED IN THE AMERICAS |
| D185 | 5″ Wide -1′ Increment | ONLY STOCKED IN THE AMERICAS |
| D187 | 7″ Wide -1′ Increment | ONLY STOCKED IN THE AMERICAS |

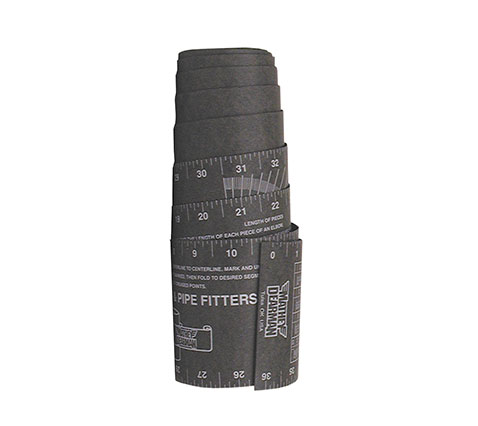

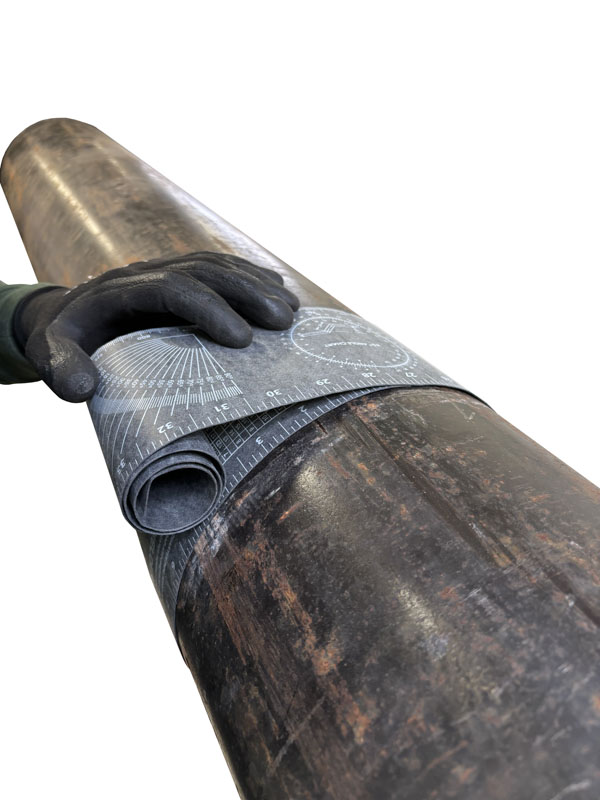

FIT-UP PRO by Mathey Dearman pipe wrap has double-ruled edges so it is never upside down or backwards. The wrap can be used as a straight edge to mark straight lines around the pipe and to mark angles for pipe elbows. The pipe wrap is constructed of highly abrasion and solvent resistant materials to last under heavy use.
Pipe wrap includes: table of tangents and straight edge, instructions for cutting elbows, sides marked in 1/8″” / 3.2 mm increments to 36″” / 914 mm, instructions for finding the length of an elbow, 45 degree angle chart and degree markings.
