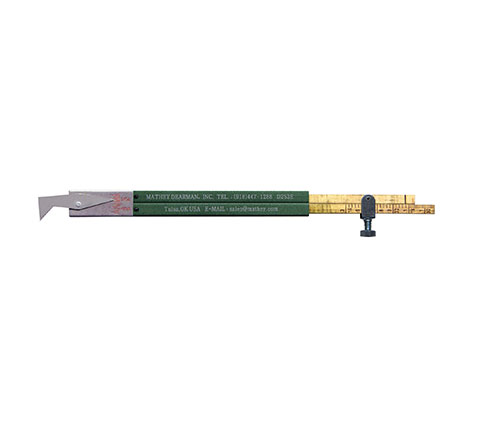

The FIT-UP PRO Q.C. Welder’s Gauge with Pit Depth attachment is a precision tool designed to streamline weld inspection and quality control. Built to measure internal misalignment (high-low), external mismatch, and pit depths, it supports both pre- and post-weld evaluations. It delivers highly accurate readings in 1/64″ / 0.4 mm increments, helping welders avoid costly rework and ensuring compliance with strict fabrication standards. The optional stainless steel pit depth gauge enhances functionality, enabling precise measurement of weld crown height, undercut, and corrosion pits. Constructed for durability, the gauge is suited for rugged field conditions while remaining easy to use. Available in both imperial and metric versions, it comes packaged individually or in boxes of ten. Lightweight and compact, this tool is a go-to solution for welders aiming for consistency, reliability, and accuracy during critical inspection phases. Whether in-shop or on-site, it boosts productivity and minimizes the risk of weld rejection.
Q.C. WELDER’S GAUGE WITH PIT DEPTH
Mobile Nav
| Part No. | Old Sumner Part No. | Description | Shipping Weight |
| D253E | 781900 | Q.C. Welder’s Gauge (IMPERIAL) | 0.2 lbs / 0.10 kg |
| D253E-BOX | n/a | Q.C. Welder’s Gauge (IMPERIAL) (box of 10) | 2.0 lbs / 0.90 kg |

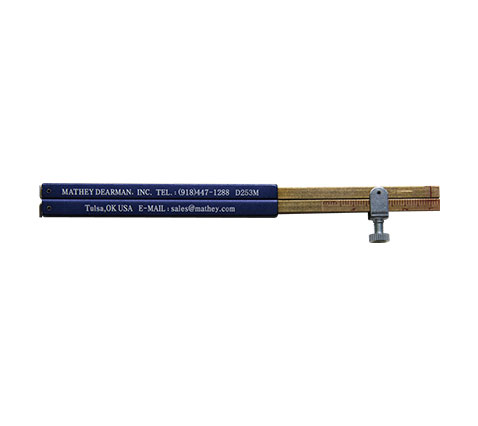

| D253M | 781901 | Q.C. Welder’s Gauge (METRIC) | 0.3 lbs / 0.15 kg |
| D253M-BOX | n/a | Q.C. Welder’s Gauge (METRIC) (box of 10) | 3.0 lbs / 1.35 kg |
The Fit-Up Pro Q.C. Welder’s Gauge by Mathey Dearman offers fast, precise measurements of internal ‘High-Low’ and plate mismatch before and after welding – minimizing costly rework and weld rejections. Available in both Imperial and Metric models, this rugged tool is a must-have for any welder. The optional stainless steel pit depth gauge attachment enables accurate measurement of pit depth, weld crown height, and external misalignment, enhancing inspection quality and weld consistency. Built for durability and ease of use, the Q.C. Welder’s Gauge is the professional’s choice for weld fit-up evaluation and quality control on-site or in-shop.
Precise: Measures as small as 1/64″” (0.4 mm)

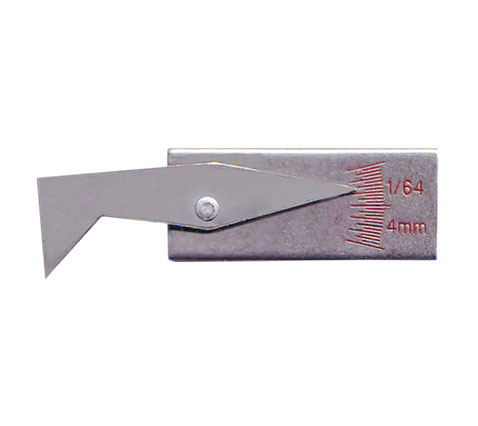

Easy: Simply slide the pit depth gauge over the Q.C. Gauge and take the reading
